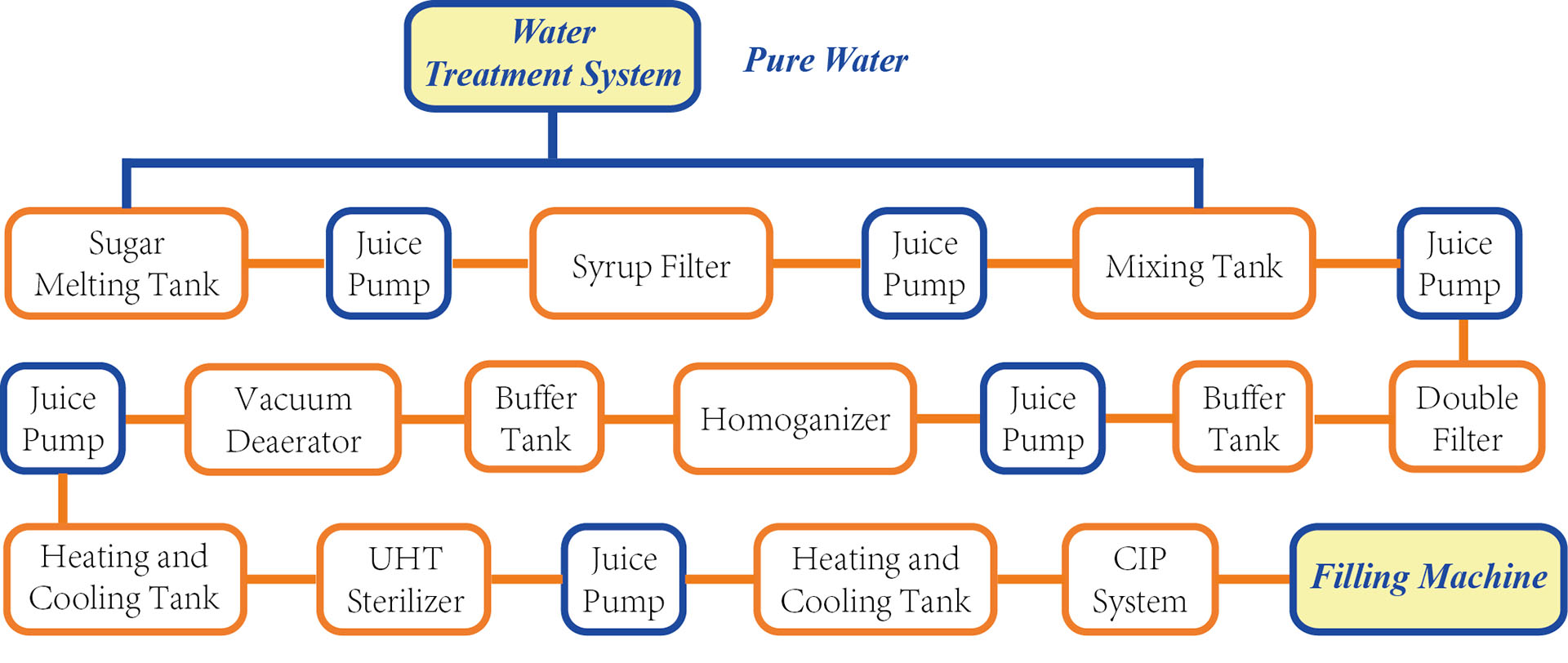

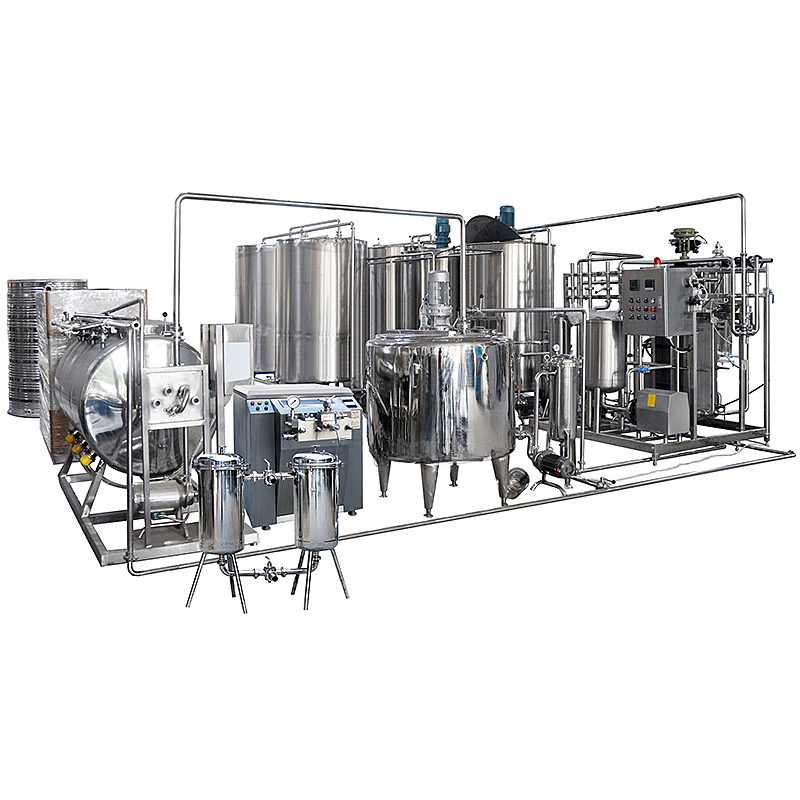

General Process Flow Chat
Solutions canbe slightly diferent because the beverage kinds, production capacity, equipment quantity will be different. So it depands on customers' actual situations.

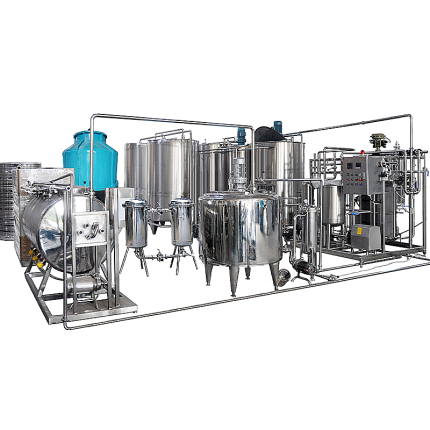

Equipment and process introduction

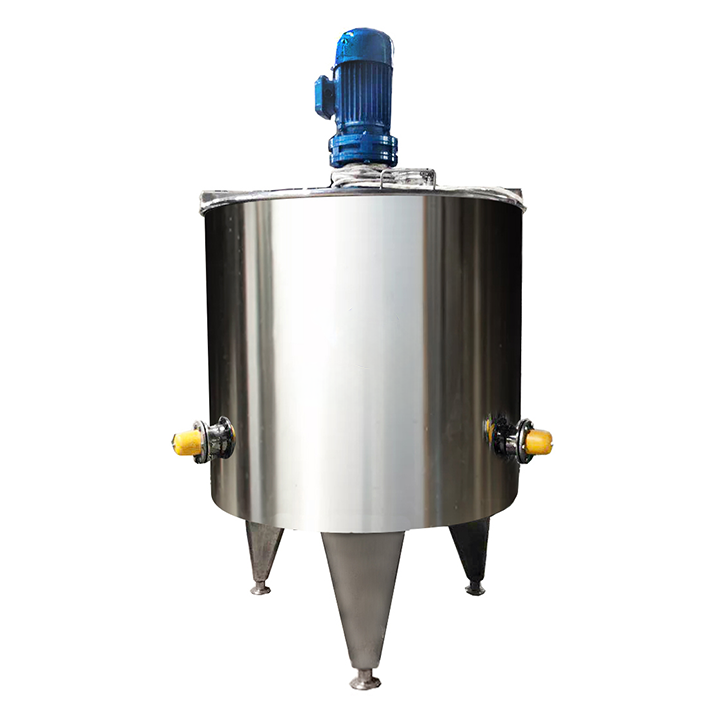

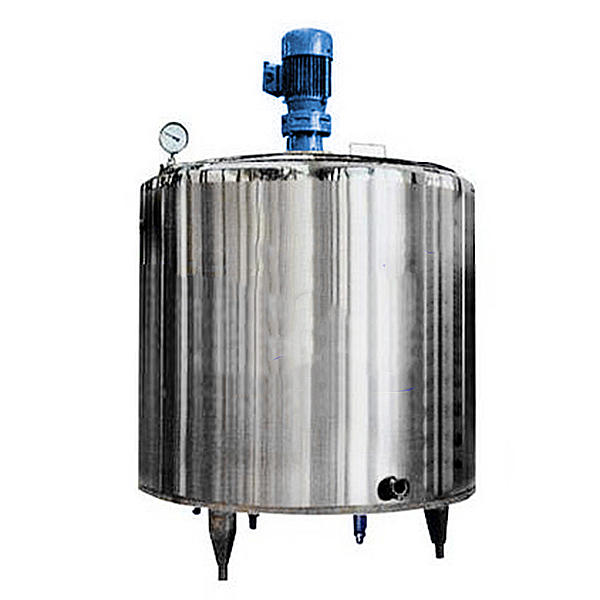

Sugar Melting Tank

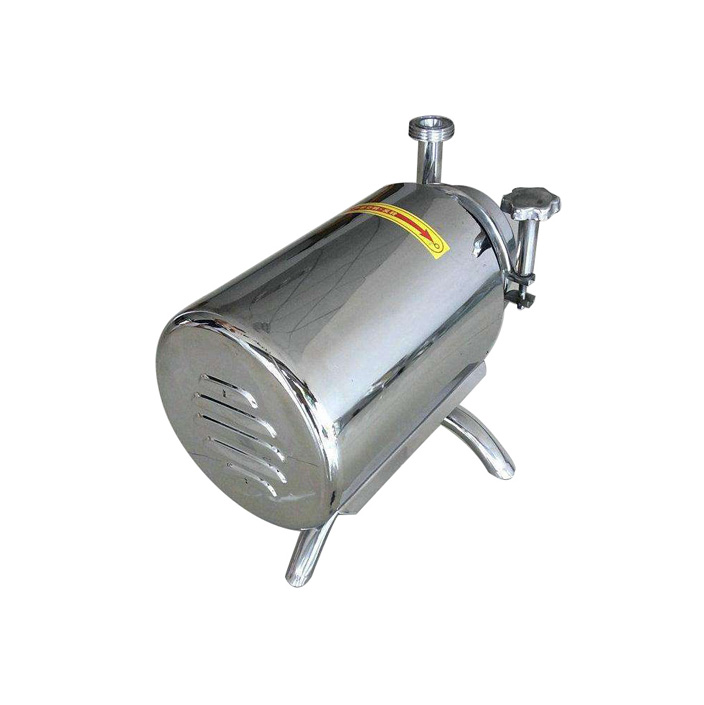

Juice Pump

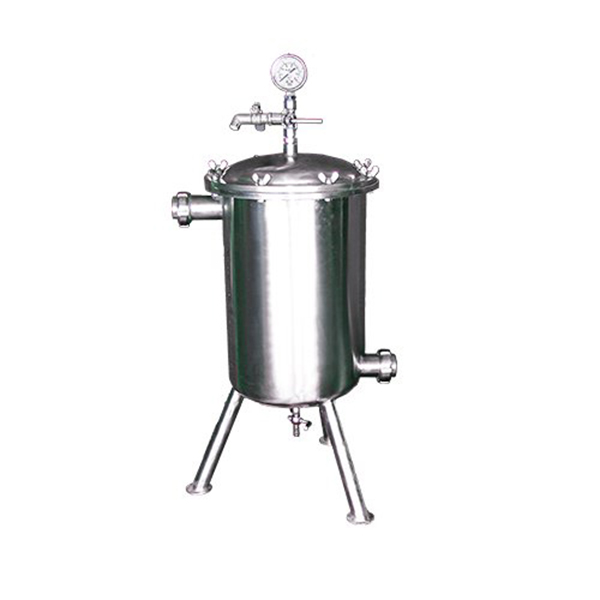

Syrup Filter
Material: stainless steel 304/316, nickel not less than 8%
Function: The device melts the sugar by heating and mixing water.
Material: Stainless Steel 304/ 316
Function: The device provides sufficient pressure for pumping juice from one device to the other.
Material: Stainless Steel 304/316
Function: The device filters the sugar that is not melted in the syrup from the sugar melting tank

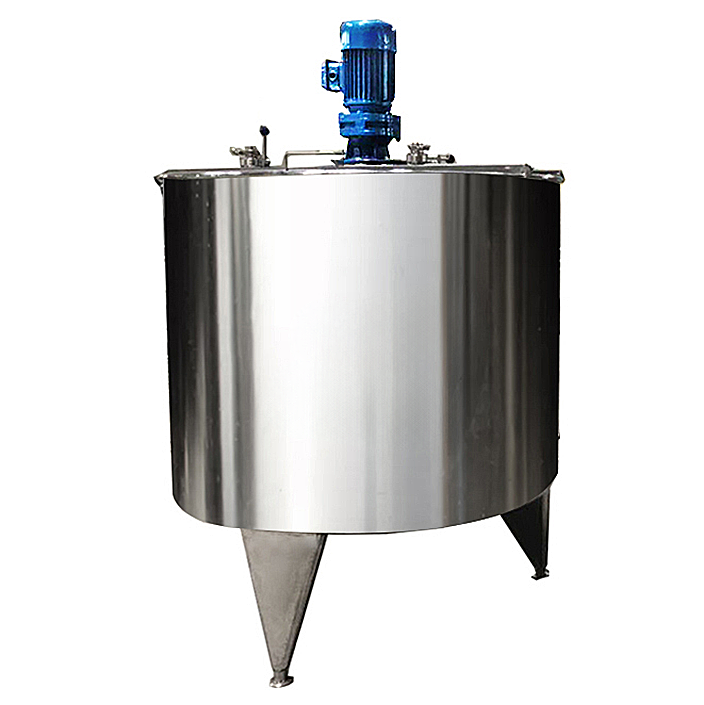

Mixing Tank

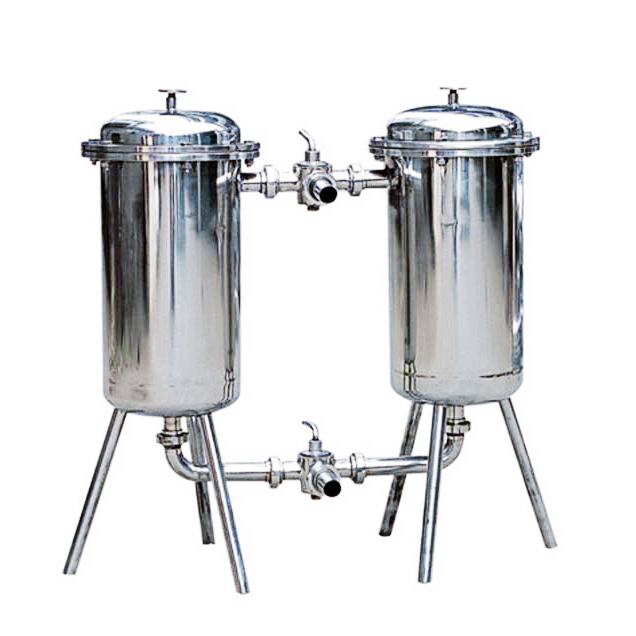

Duplex Filter

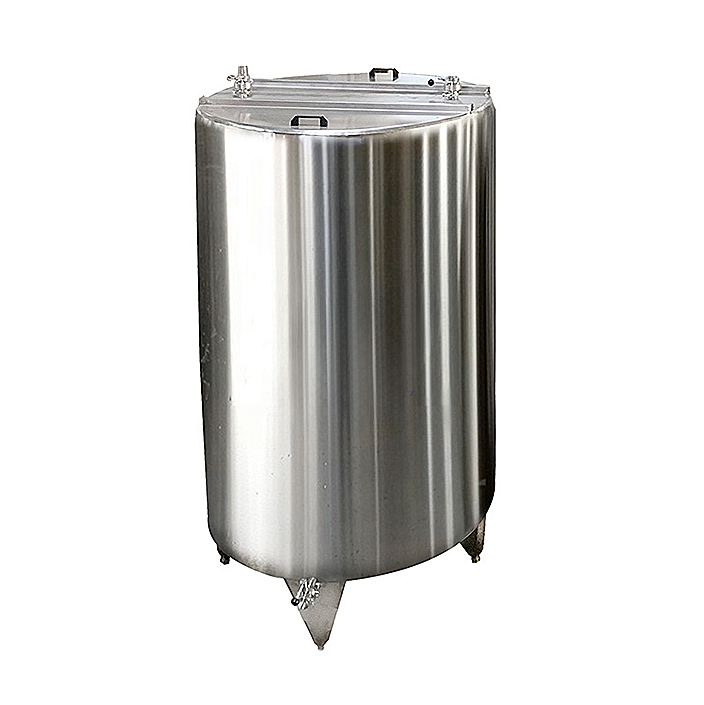

Buffer Tank
Material: Stainless Steel 304/ 316
Function: Syrup, water and other materials are fully mixed in the mixing tank.
Material: Stainless Steel 304/ 316
Function: The Device filters any material that is not melted in the mixed juice from the mixing tank.
Material: Stainless Steel 304/ 316
Function: The Device bufers the pressure from the pump, making thejuice pressure goes through the connected devices evenly.

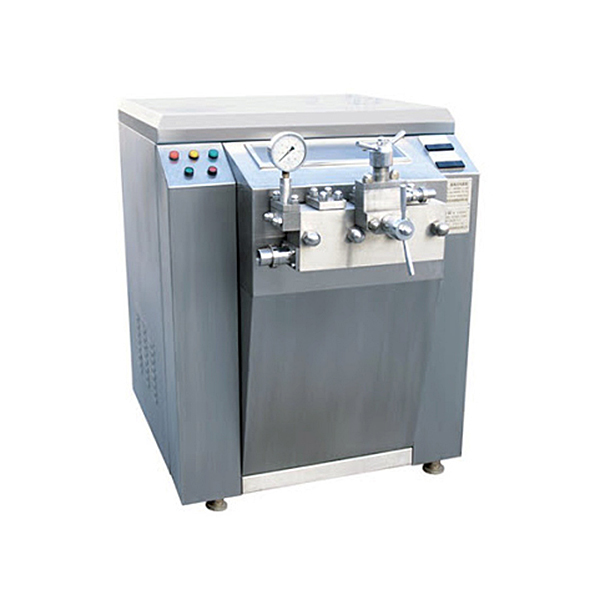

High Pressure Homogenizor

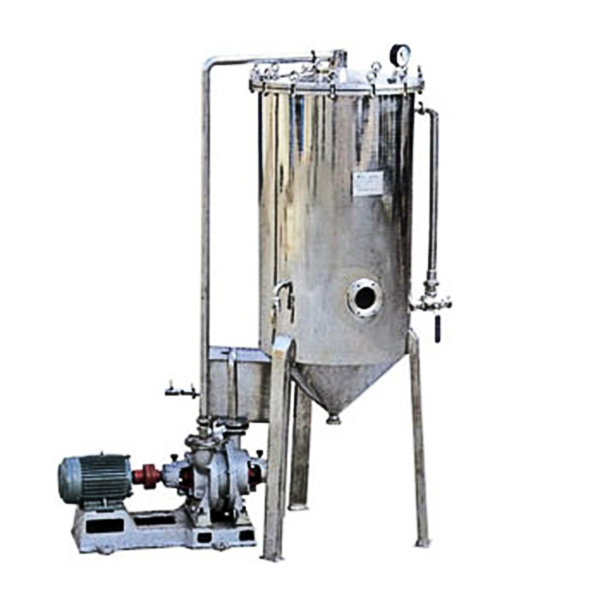

Vacuum Degassing Machine
Heating or Cooling Tank
Function: The all materials and liquid are
homogenized under high pressure environment, so as to improve the mixing quality to the max.
Material: Stainless Steel 304/ 316
Functions: The machine degases the homogenized juice under vacuum condition, so as to prevent juice from being oxidized and prolong the storing period of the juice.
Material: Stainless Steel 304/ 316
Functions: The device heats or cools the water for the uses of beverage mixing, temperature control and cleaning.

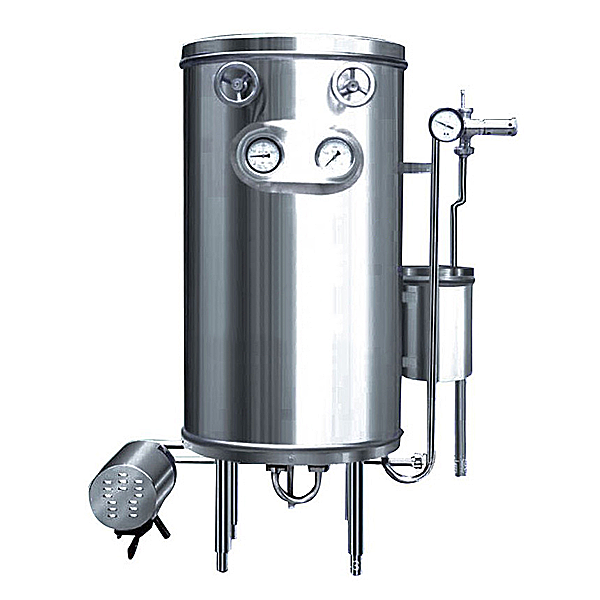

UHT Sterilizer

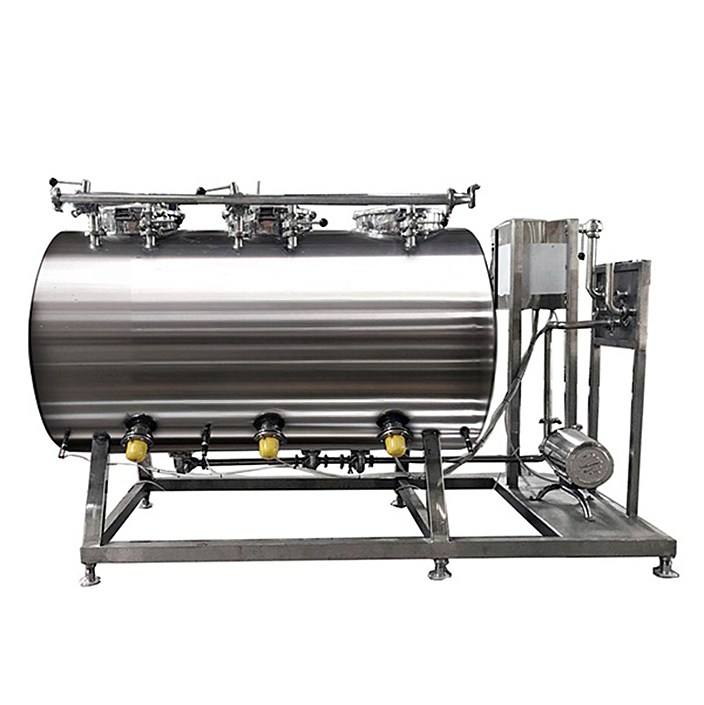

CIP Cleaning System

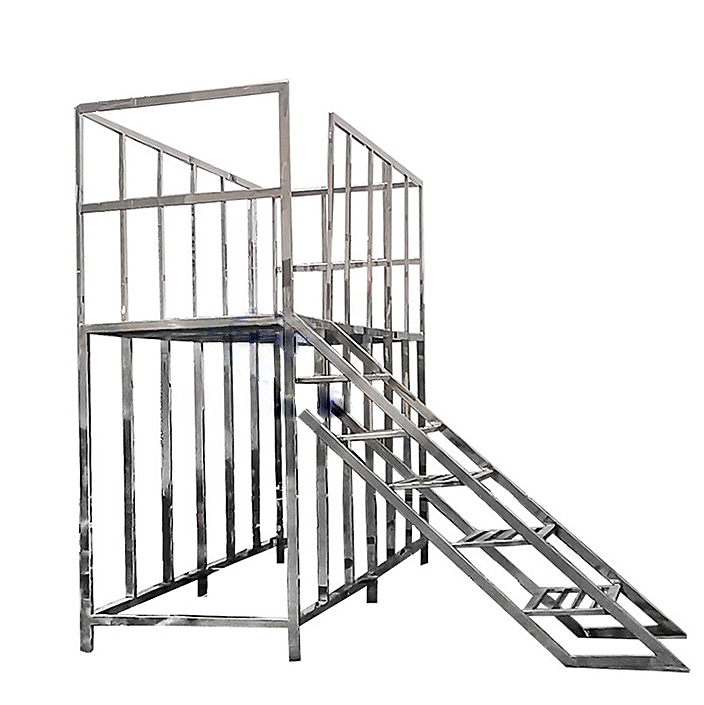

Customized Working Platform
Material: Stainless Steel 304/ 316
Function: This device provides high temperature to the juice for sterilizing all bacteria in it.
Material: Stainless Steel 304/ 316
Function: The Machine is for cleaning the inner parts of all machine and tubing for the whole mixing system with detergent and high pressure water flow.
Material: Stainless Steel 304/ 316
Function: This platform is specially used for operating
all equipment in the mixing system. It can be customized according to your requirement.
